Structural Design Considerations

Bearings are normally mounted with their short side parallel to the girder axis for maximum rotation capacity. Friction is usually sufficient to keep bearings in place, but if minimum loads are light, then a slippage check must be made.

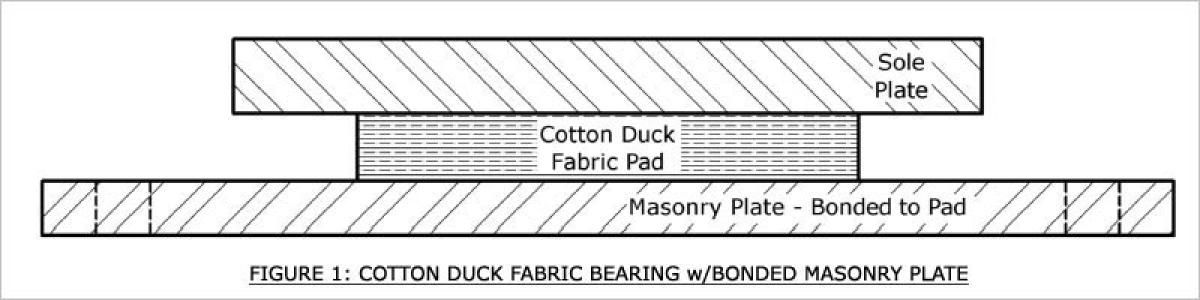

If a positive location is required, bonding of the pad to steel plates is suggested (See Figure 1).
